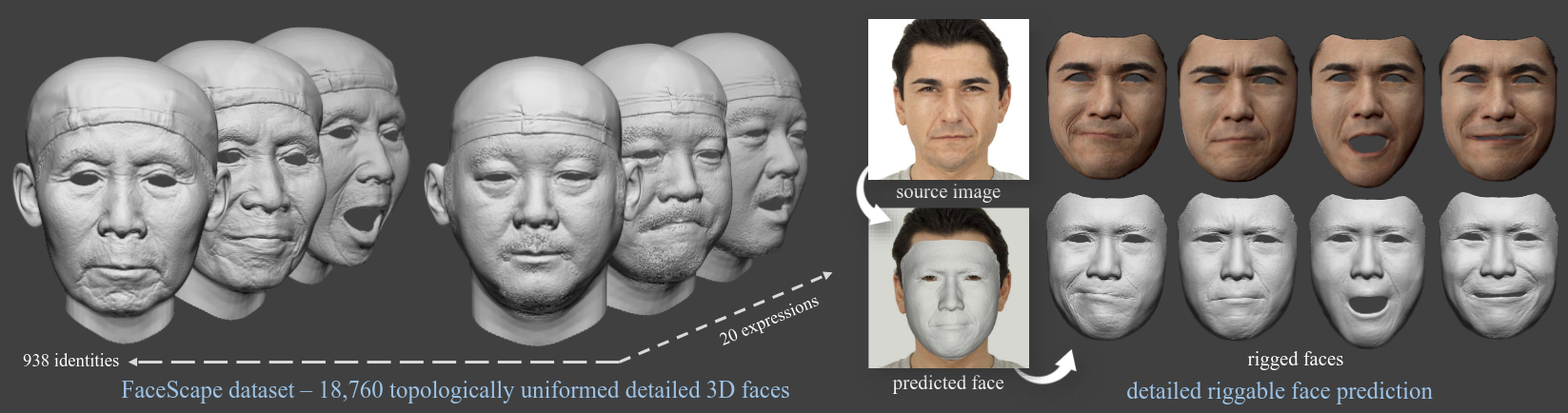

FaceScape: a Large-scale High Quality 3D Face Dataset and Detailed Riggable 3D Face Prediction

We present a large-scale detailed 3D face dataset, FaceScape, and propose a novel algorithm that is able to predict elaborate riggable 3D face models from a single image input. FaceScape dataset provides 3D face models, parametric models and multi-view images in large-scale and high-quality. The camera parameters, the age and gender of the subjects are also included. The data have been released to public for non-commercial research purpose.

The data available for downloading contains 847 subjects x 20 expressions, in a total of 16,940 models, which is roughly 90% of the complete data. The other 10% of data are not released for potential evaluation or benchmark in the future. The available data includes:

Data Description

1. Information

• Information List (size: 1KB)
  A text file containing the ages and gender of the subjects. From left to right, each row is the index, gender (m-male, f-female), age, and valid label. '-' means this information is not provided. Valid label is [1 + 4] binary number, 1-True, 0-False. The first number means if the model for this person is complete and valid, and the rest four means if obj-model, mtl-material, jpg-texture, and png-dpmap are missing.
• Publishable List (size: 1KB)
  A text file containing the indexes of the model that can be used for paper publication or presentation. Please read the 4th term in the license for more about this policy. The publishable list may be updated in the future.

2. TU Models (size: 120GB)

There are 847 tuple of topologically uniformed models. Each tuple of data consists of:

• 20 base mesh models (/models_reg/$IDENTITY$_$EXPRESSION$.obj)
• 20 displacement maps (/dpmap/$IDENTITY$_$EXPRESSION$.png)
• 1 base material file (/models_reg/$IDENTITY$_$EXPRESSION$.obj.mtl)
• 1 texture (/models_reg/$IDENTITY$_$EXPRESSION$.jpg) where $IDENTITY$ is the index of identity (1 - 847), $EXPRESSION$ is the index of expression (0 - 20). Please note that some of the model's texture maps (index: 360 - 847) were mosaics around the eyes to protect the privacy of some participants.

3. Multi-view Data

FaceScape provides multi-view images, camera paramters and reconstructed 3D shapes. There are 359 subjects x 20 expressions = 7120 tuples of data. The number of available images reaches to over 400k.

Please view here for detailed description and usage of the multi-view data.

4. Bilinear model (size: 4.67GB)

Our bilinear model is a statistical model which transforms the base shape of the faces into a vector space representation. We provide two 3DMM with different numbers of identity parameters:

• core_847_50_52.npy - bilinear model with 52 expression parameters and 50 identity parameters.
• core_847_300_52.npy - bilinear model with 52 expression parameters and 300 identity parameters.
• factors_id_847_50_52.npy and factors_id_847_300_52.npy are identity parameters corresponding to 847 subjects in the dataset.

Please see here for the usage and the demo code.

5. Tools

We provide Python code to extract facial landmarks and facial region from the TU-models. Please keep a watch on our project page where the latest resources will be updated in the future.

Preview

One sample is rendered online as shown below. The online-rendered model is the down-sampled version of provided model, because high-resolution displacement map is too slow to be rendered online. The rendering result with the high-resolution displacement map is shown in the figure below the online-renderer.

• Online Rendering (Down-Sampled)
• Offline Rendering

• factors_id_847_50_52.npy and factors_id_847_300_52.npy are identity parameters corresponding to 847 subjects in the dataset.

Features

1. Topologically uniformed.

The geometric models of different identities and different expressions share the same mesh topology, which makes the features on faces easy to be aligned. This also helps in building a 3D morphable model.

2. Displacement map + base mesh.

We use base shapes to represent rough geometry and displacement maps to represent detailed geometry, which is a two-layer representation for our extremely detailed face shape. Some light-weight software like MeshLab can only visualize the base mesh model/texture. Displacement maps can be loaded and visualized in MAYA, ZBrush, 3D MAX, etc.

3. 20 specific expressions.

The subjects are asked to perform 20 specific expressions for capturing: neutral, smile, mouth-stretch, anger, jaw-left, jaw-right, jaw-forward, mouth-left, mouth-right, dimpler, chin-raiser, lip-puckerer, lip-funneler, sadness, lip-roll, grin, cheek-blowing, eye-closed, brow-raiser, brow-lower.

4. High resolution.

The texture maps and displacement maps reach 4K resolution, which preserving maximum detailed texture and geometry.

For downloading the dataset, please complete the License Agreement and send it to nju3dv@nju.edu.cn, and download from download link (Google Drive) or download link (Baidu Netdisk).

When you submit request, which means you have read, understand, and commit to the entirety of the License Agreement. There are, still, a few KEY POINTS which need to emphasise again:

• The email subject should be [FaceScape Dataset Request].
• NO COMMERCIAL USE: The license granted is for internal, non-commercial research, evaluation or testing purposes only. Any use of the DATA or its contents to manufacture or sell products or technologies (or portions thereof) either directly or indirectly for any direct or indirect for-profit purposes is strictly prohibited.
• NO WARRANTY: The data are provided "as is" and any express or implied warranties are disclaimed.
• RESTRICTED USE IN RESEARCH: The portraits including images and rendered model cannot be published in any form, except for the data as listed in the publishable list.

1. How can an undergraduate or graduate student get access to the data?

Undergraduates or graduate students can ask their supervisor to apply for the downloading. Please forgive us for adopting a strict authorization process due to the sensibilities of facial data. We're doing our best to keep the data from being misused.

2. Can I use the data in paper publication or presentation?

Only publishable data (see publishable list in data format section) can be used in paper publication or presentation. Other data are forbidden to be published in any form, including publication of papers, presentations, etc. This has been declared in the 4th clause of the license.

3. Why using displacement map?

For a detailed 3D face model, Displacement map + base mesh is much more space-efficient than simply mesh with massive vertices.

4. Can I transform a "displacement map + base mesh" model to a high-vertex mesh?

Yes, if you want to get the detailed mesh model from the displacement map, one can refer to the function [apply displacement map] in software like ZBrush.

5. Why are some textures blurry around the eyes?

Some of the model's texture maps (index: 360-847) were mosaics around the eyes to protect the privacy of some participants.

6. How to extract the facial region from the whole head?

We use a binary texture map to render the facial mask, and then use the mask to extract the facial part. All experiments in our paper use the same binary texture map to extract the facial region.

If you have some questions, please refer to the issue section of our GitHub repository, or send email to nju3dv@nju.edu.cn and cc zh@nju.edu.cn. We recommend to firstly browse the FAQ and the solved issues in GitHub repository, where the answer you want may has been given.
